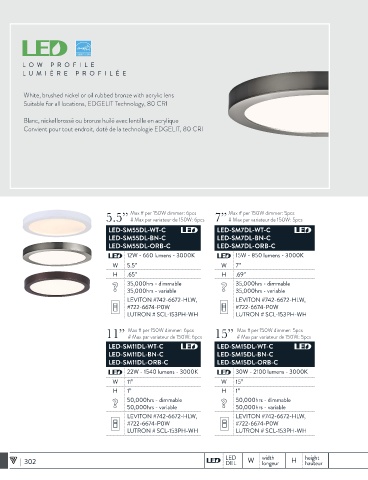

Page 22 - Catalogue de luminaires DEL Canarm 2018

L O W PROFILE L O W PROFILE
L UMIÈRE PROFILÉE L UMIÈRE PROFILÉE

White, brushed nickel or oil rubbed bronze with acrylic lens White, brushed nickel or oil rubbed bronze with acrylic lens
Suitable for all locations, EDGELIT Technology, 80 CRI Suitable for all locations, EDGELIT Technology, 80 CRI

Blanc, nickel brossé ou bronze huilé avec lentille en acrylique Blanc, nickel brossé ou bronze huilé avec lentille en acrylique
Convient pour tout endroit, doté de la technologie EDGELIT, 80 CRI Convient pour tout endroit, doté de la technologie EDGELIT, 80 CRI

Max # per 150W dimmer: 6pcs Max # per 150W dimmer: 5pcs Max # per 150W dimmer: 6pcs Max # per 150W dimmer: 5pcs
5.5” # Max par variateur de 150W: 6pcs 7” # Max par variateur de 150W: 5pcs 5.5”# Max par variateur de 150W: 6pcs 7” # Max par variateur de 150W: 5pcs
LED-SM55DL-WT-C LED-SM7DL-WT-C LED-SM63DL-WT-C LED-SM8DL-WT-C
LED-SM55DL-BN-C LED-SM7DL-BN-C LED-SM63DL-BN-C LED-SM8DL-BN-C
LED-SM55DL-ORB-C LED-SM7DL-ORB-C LED-SM63DL-ORB-C LED-SM8DL-ORB-C
12W - 660 lumens - 3000K 15W - 850 lumens - 3000K 13W - 720 lumens - 3000K 18W - 1000 lumens - 3000K
W 5.5” W 7” W 5.5” W 7”
H .65” H .69” H .65” H .69”
? 35,000hrs - dimmable ? 35,000hrs - dimmable ? 35,000hrs - dimmable ? 35,000hrs - dimmable
35,000hrs - variable
35,000hrs - variable
35,000hrs - variable
35,000hrs - variable
LEVITON #742-6672-HLW, LEVITON #742-6672-HLW, LEVITON #742-6672-HLW, LEVITON #742-6672-HLW,
#722-6674-P0W #722-6674-P0W #722-6674-P0W #722-6674-P0W
LUTRON # SCL-153PH-WH LUTRON # SCL-153PH-WH LUTRON # SCL-153PH-WH LUTRON # SCL-153PH-WH

Max # per 150W dimmer: 6pcs Max # per 150W dimmer: 5pcs Max # per 150W dimmer: 6pcs Max # per 150W dimmer: 5pcs
11” # Max par variateur de 150W: 6pcs 15” # Max par variateur de 150W: 5pcs 11” # Max par variateur de 150W: 6pcs 15” # Max par variateur de 150W: 5pcs
LED-SM11DL-WT-C LED-SM15DL-WT-C LEDS-SM11DL-WT-C LEDS-SM15DL-WT-C
LED-SM11DL-BN-C LED-SM15DL-BN-C LEDS-SM11DL-BN-C LEDS-SM15DL-BN-C
LED-SM11DL-ORB-C LED-SM15DL-ORB-C LEDS-SM11DL-ORB-C LEDS-SM15DL-ORB-C
22W - 1540 lumens - 3000K 30W - 2100 lumens - 3000K 22W - 1540 lumens - 3000K 30W - 2100 lumens - 3000K
W 11” W 15” W 11” W 15”
H 1” H 1” H 1” H 1”
? 50,000hrs - dimmable ? 50,000hrs - dimmable ? 50,000hrs - dimmable ? 50,000hrs - dimmable
50,000hrs - variable
50,000hrs - variable
50,000hrs - variable
50,000hrs - variable
LEVITON #742-6672-HLW, LEVITON #742-6672-HLW, LEVITON #742-6672-HLW, LEVITON #742-6672-HLW,
#722-6674-P0W #722-6674-P0W #722-6674-P0W #722-6674-P0W
LUTRON # SCL-153PH-WH LUTRON # SCL-153PH-WH LUTRON # SCL-153PH-WH LUTRON # SCL-153PH-WH

www.canarm.com
| 302 LED W width H height compatible dimmers www.trianglelogo.com | 303
DEL
hauteur
longeur
variateur d’intensité mural compatible
