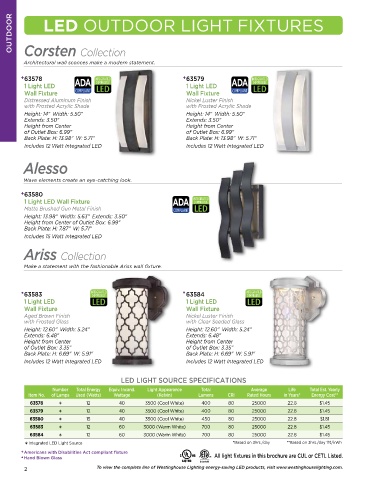

Page 2 - Catalogue de luminaires extérieurs Westinghouse 2018

OUTDOOR LED OUTDOOR LIGHT FIXTURES

Corsten Collection

Architectural wall sconces make a modern statement.

+ 63578 ADA INTEGRATED + 63579 ADA INTEGRATED
1 Light LED DIMMABLE 1 Light LED DIMMABLE
Wall Fixture COMPLIANT Wall Fixture COMPLIANT
Distressed Aluminum Finish Nickel Luster Finish
with Frosted Acrylic Shade with Frosted Acrylic Shade
Height: 14" Width: 5.50" Height: 14" Width: 5.50"
Extends: 3.50" Extends: 3.50"
Height from Center Height from Center
of Outlet Box: 6.99" of Outlet Box: 6.99"
Back Plate: H: 13.98" W: 5.71" Back Plate: H: 13.98" W: 5.71"
Includes 12 Watt Integrated LED Includes 12 Watt Integrated LED

Alesso

Wave elements create an eye-catching look.

+ 63580
1 Light LED Wall Fixture ADA INTEGRATED
DIMMABLE
Matte Brushed Gun Metal Finish COMPLIANT
Height: 13.98" Width: 5.63" Extends: 3.50"
Height from Center of Outlet Box: 6.99"
Back Plate: H: 7.87" W: 5.71"
Includes 15 Watt Integrated LED
Ariss Collection

Make a statement with the fashionable Ariss wall fixture.

• 63583 INTEGRATED • 63584 INTEGRATED
DIMMABLE
DIMMABLE
1 Light LED 1 Light LED
Wall Fixture Wall Fixture
Aged Brown Finish Nickel Luster Finish
with Frosted Glass with Clear Seeded Glass
Height: 12.60" Width: 5.24" Height: 12.60" Width: 5.24"
Extends: 6.48" Extends: 6.48"
Height from Center Height from Center
of Outlet Box: 3.35" of Outlet Box: 3.35"
Back Plate: H: 6.69" W: 5.91" Back Plate: H: 6.69" W: 5.91"
Includes 12 Watt Integrated LED Includes 12 Watt Integrated LED

LED LIGHT SOURCE SPECIFICATIONS
Number Total Energy Equiv. Incand. Light Appearance Total Average Life Total Est. Yearly
Item No. of Lamps Used (Watts) Wattage (Kelvin) Lumens CRI Rated Hours in Years* Energy Cost**
63578 � 12 40 3500 (Cool White) 400 80 25000 22.8 $1.45
63579 � 12 40 3500 (Cool White) 400 80 25000 22.8 $1.45
63580 � 15 40 3500 (Cool White) 450 80 25000 22.8 $1.81
63583 � 12 60 3000 (Warm White) 700 80 25000 22.8 $1.45
63584 � 12 60 3000 (Warm White) 700 80 25000 22.8 $1.45
� Integrated LED Light Source *Based on 3hrs./day **Based on 3hrs./day 11¢/kWh
+ Americans with Disabilities Act compliant fixture All light fixtures in this brochure are CUL or CETL Listed.
• Hand Blown Glass
www.westinghouselighting.com
2 To view the complete line of Westinghouse Lighting energy-saving LED products, visit www.westinghouselighting.com.
