Page 4 - Catalogue de hottes de cuisine

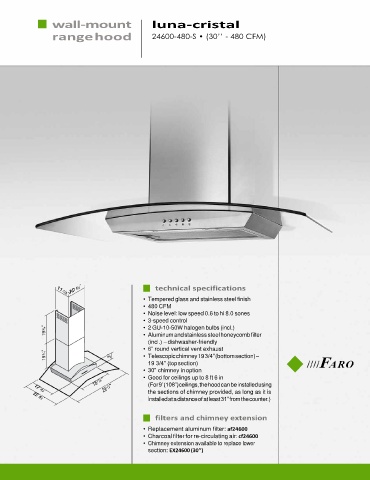

wall-mount luna-cristal

range hood 24600-480-S • (30’’ - 480 CFM)

technical specifications

• Tempered glass and stainless steel finish
• 480 CFM
• Noise level: low speed 0.6 to hi 8.0 sones
• 3-speed control
19 3 /4” • 2 GU-10-50W halogen bulbs (incl.)
• Aluminum and stainless steel honeycomb filter
(incl.) – dishwasher-friendly
• 6” round vertical vent exhaust
19 3 /4” 3” • Telescopic chimney 19 3/4” (bottom section) –
19 3/4” (top section)
• 30” chimney in option
• Good for ceilings up to 8 ft 6 in
(For 9’ (108”) ceilings, the hood can be installed using
the sections of chimney provided, as long as it is
installed at a distance of at least 31” from the counter.)

filters and chimney extension
• Replacement aluminum filter: af24600
• Charcoal filter for re-circulating air: cf24600
• Chimney extension available to replace lower
section: EX24600 (30’’)
