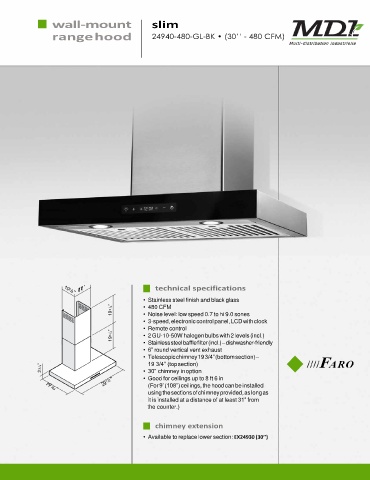

wall-mount slim

range hood 24940-480-GL-BK • (30’’ - 480 CFM)

technical specifications

• Stainless steel finish and black glass
19 3 /4” • 480 CFM
• Noise level: low speed 0.7 to hi 9.0 sones
• 3-speed, electronic control panel, LCD with clock
• Remote control
19 3 /4” • 2 GU-10-50W halogen bulbs with 2 levels (incl.)
• Stainless steel baffle filter (incl.) – dishwasher-friendly
• 6” round vertical vent exhaust
• Telescopic chimney 19 3/4” (bottom section) –
19 3/4” (top section)
2 3 /4” • 30” chimney in option
• Good for ceilings up to 8 ft 6 in
(For 9’ (108”) ceilings, the hood can be installed
using the sections of chimney provided, as long as
it is installed at a distance of at least 31” from
the counter.)

chimney extension

• Available to replace lower section: EX24930 (30’’)
