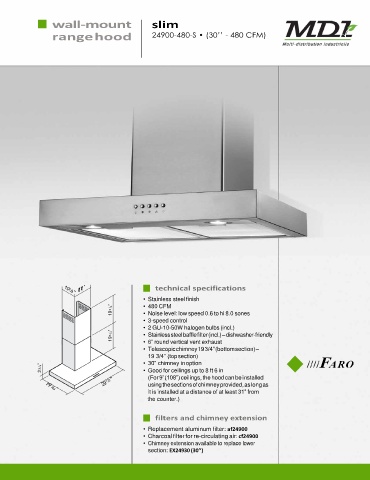

Page 5 - Catalogue de hottes de cuisine

wall-mount slim

range hood 24900-480-S • (30’’ - 480 CFM)

technical specifications

• Stainless steel finish
19 3 /4” • 480 CFM
• Noise level: low speed 0.6 to hi 8.0 sones
• 3-speed control
• 2 GU-10-50W halogen bulbs (incl.)
19 3 /4” • Stainless steel baffle filter (incl.) – dishwasher-friendly
• 6” round vertical vent exhaust
• Telescopic chimney 19 3/4” (bottom section) –
19 3/4” (top section)
2 3 /4” • 30” chimney in option
• Good for ceilings up to 8 ft 6 in
(For 9’ (108”) ceilings, the hood can be installed
using the sections of chimney provided, as long as
it is installed at a distance of at least 31” from
the counter.)

filters and chimney extension
• Replacement aluminum filter: af24900
• Charcoal filter for re-circulating air: cf24900
• Chimney extension available to replace lower
section: EX24930 (30’’)
